SF6 Gas Leakage On-line Monitoring System

Real-time monitoring • Voice prompt • Fan linkage

Measurement range: (0 - 1500) ppm

Maximum allowable error: ±30ppm or ±5% (display value)

Repeatability: ≤3%

Range and zero drift: ±3%F.S

Response time: < 60

Product Introduction

The SF6 gas leakage on-line monitoring system remotely transmits the real-time measurement information of SF6 (sulfur hexafluoride), oxygen (O₂), temperature and humidity on-site to the DCS through the RS-485 bus. When the measured data exceeds the set alarm value, the monitoring system controls the activation of audible and visual alarms or exhaust equipment. With the human infrared monitoring function, when a human body is sensed, the fan is automatically turned on. After exhausting for a certain period of time (the exhaust time can be set in the fan parameters as required), the staff can enter the work area to ensure safe production on-site.

It is widely applicable to the occasions where SF6 gas is used in GIS electrical switches, transformers, electrical busbars, etc. in the power industry, metallurgical industry, petrochemical industry, etc.

Main Features

1. The SF6 gas leakage on-line monitoring system uses imported SF₆ gas infrared sensors with an ultra-long service life.

2. Detection and display of environmental temperature, humidity and oxygen content.

3. The SF6 gas leakage on-line monitoring system can be equipped with functional components such as human infrared detectors, voice prompts, audible and visual alarms, and linked fans.

4. Supports RS-485 bus data input, and can achieve detection, display, recording and alarm of up to 64 monitoring points.

5. The SF6 gas leakage on-line monitoring system supports the remote transmission output of measurement data through RS-485.

Product Parameters

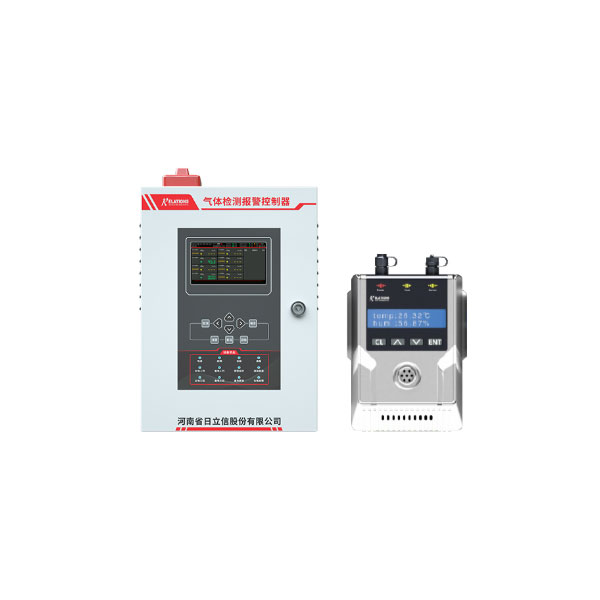

Parameters of NA1000MR Multi-channel Alarm Controller

Parameters of NA1000FDII Gas Detection Alarm Instrument
