Filter: Filters moisture, decomposition products and solid particles
Filtration Particle Size: ≤1μm
Pressure - regulated Output: (1 - 10) bar
Vaporizer: 1.5kW
Oil - free Water - cooled Compressor: 15m³/h
Final Output Pressure: 50bar

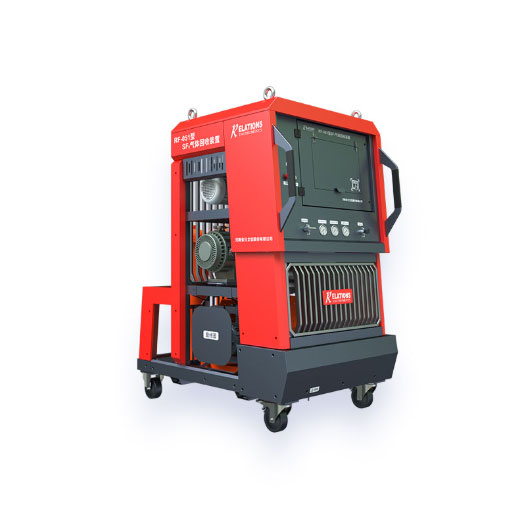

The RF - 051 small SF6 gas recovery vehicle is mainly used to provide multi - functional comprehensive gas treatment services for SF6 electrical equipment and switch gas chambers. This SF6 gas recovery vehicle integrates functions such as vacuum pumping, gas recovery, gas refilling, cylinder pressure - filling and vaporization output. When pumping vacuum, the PLC operation screen instantly displays the change of vacuum degree. During gas recovery, the gas can be recovered into the gas storage tank or an external cylinder. For gas refilling, there are multiple options such as direct filling (direct filling, pressure - regulated output) and pressure - filling (gas pressure - filling, liquid pressure - filling). The design and manufacture of the equipment meet the requirements of the DL/T 662 standard. This device adopts a semi - enclosed protective structure and modular combined design and manufacture. It has the characteristics of complete functions, stable and reliable quality, convenient maintenance and use, simple operation and beautiful appearance. It is suitable for SF6 gas recovery and treatment scenarios under different conditions and is widely used in the power system.
1. SF6 gas recovery and storage
2. The small SF6 gas recovery vehicle refills the stored SF6 gas into switch equipment or pressure vessels.
3. It can filter impurities such as moisture, decomposition products and solid particles in SF6 gas.
4. The small SF6 gas recovery vehicle pumps vacuum for itself and external equipment, and real - time detects and displays the vacuum degree.
5. It has a negative - pressure recovery function to improve the recovery rate.
6. The vacuum pump of this SF6 gas recovery vehicle is equipped with an anti - oil - return valve to prevent oil return.
7. It is equipped with an independent storage tank and gas heating system to improve the refilling efficiency.
8. The RF - 051 SF6 gas recovery vehicle has an SF6 liquid filling function. It can fill a 40L cylinder with 50kg of SF6 in (5 - 8) minutes.
9. Different refrigeration methods can be selected, which are suitable for the ambient temperatures in different regions of the world to ensure fast and efficient recovery.
| Parameter Name | Parameter Value |
|---|---|
| Filter | Filters moisture, decomposition products and solid particles |
| Filtration Particle Size | ≤1μm |
| Pressure Regulation Output | (1~10) bar |
| Vaporizer | 1.5kW |
| Recovery Pipe | DN19*10m, with a DN20 self-sealing joint at one end, and a ball valve and cylinder joint at the other end |
| Refilling Pipe | DN13*3m, with a DN20 self-sealing joint at one end, and a ball valve and cylinder joint at the other end |
| Auxiliary Recovery Cooling Type | Water-cooled |
| Application Range | Suitable for SF₆ electrical equipment of 72.5kV~110kV, 220kV porcelain column circuit breakers; SF₆ recovery and refilling operations in 500kV porcelain column circuit breakers |
| Oil-free Water-cooled Compressor | 15m³/h |
| Final Output Pressure | 50bar |
| Dimensions | 1490mm×1070mm×2030mm (L×W×H) |
