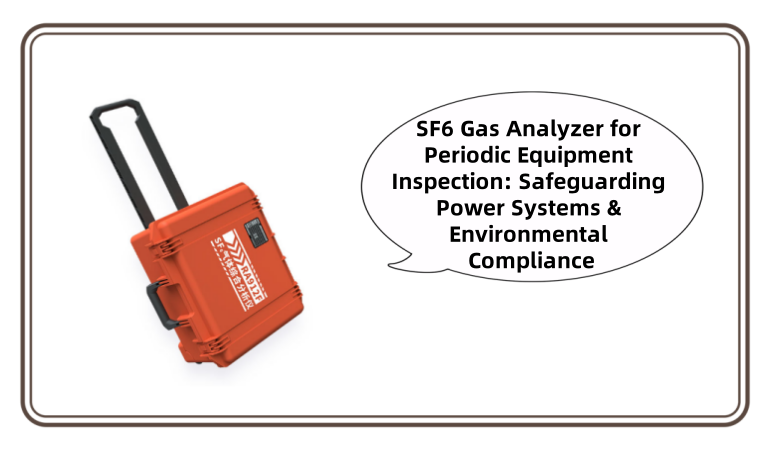

SF6 Gas Analyzer for Periodic Equipment Inspection: Safeguarding Power Systems & Environmental Compliance

SF6 Gas Analyzer for Periodic Equipment Inspection: Safeguarding Power Systems & Environmental Compliance

Why Periodic Inspection of SF6-Insulated Equipment Is Non-Negotiable

Over time, SF6-insulated equipment faces wear, seal degradation, or microscopic damage, leading to gas leakage. Even small leaks can:

1. Reduce SF6 concentration, compromising the equipment’s insulation performance and increasing the risk of electrical arcing or breakdowns—potentially causing costly power outages.

2. Release SF6 into the atmosphere, violating global environmental standards (e.g., the Kyoto Protocol) and exposing operators to non-compliance penalties.

3. Contaminate SF6 with moisture, air, or decomposition byproducts (e.g., SO₂, HF), which corrode internal components and shorten equipment life.

Periodic inspection addresses these risks, but traditional manual checks (e.g., pressure gauges) are imprecise. A dedicated SF6 gas analyzer eliminates guesswork by providing accurate, real-time data on key gas parameters.

Core Functions of an SF6 Gas Analyzer for Periodic Inspection

A high-quality SF6 gas analyzer is designed to measure three critical metrics during periodic inspections, ensuring comprehensive equipment health assessments:

1. SF6 Leak Detection: The analyzer uses technologies like acoustic sensing, infrared (IR) absorption, or ultrasonic detection to identify leaks as small as 1×10⁻⁹ mbar·L/s. This is vital for locating hidden leaks in GIS enclosures or transformer seals before they escalate.
2. SF6 Purity Analysis: Pure SF6 (≥99.8%) is required for optimal insulation. The analyzer measures impurity levels (e.g., air, N₂, O₂) to confirm if the gas meets IEC 60376 standards. Low purity often indicates leaks or improper gas handling, requiring immediate gas recovery or replacement.
3. Moisture Content Measurement: Moisture (humidity) in SF6 accelerates equipment corrosion and reduces dielectric strength. The analyzer quantifies moisture levels (typically in μL/L) and alerts operators if levels exceed safe thresholds (e.g., <50 μL/L for GIS).

Many modern analyzers also include data logging and cloud connectivity, allowing teams to track inspection results over time and trend equipment performance—simplifying predictive maintenance.

Key Factors to Choose the Right SF6 Gas Analyzer for Periodic Inspection

Not all SF6 gas analyzers are suited for periodic field inspections. When selecting one, prioritize these features to align with on-site needs:

1. Portability: Field inspections require lightweight (≤5 kg), battery-powered analyzers that can be easily transported to substations or remote sites.

2. Accuracy & Speed: Look for analyzers with a measurement accuracy of ±1% for purity and ±2 μL/L for moisture, with results displayed in <30 seconds—reducing inspection downtime.

3. Compliance with Standards: Ensure the analyzer meets international norms like IEC 60480 (SF6 handling) and EN 17346 (leak detection), guaranteeing data validity for regulatory reporting.

4. Durability: Industrial-grade casing (IP54 or higher) protects the analyzer from dust, moisture, and temperature fluctuations—common in outdoor power facilities.

Real-World Impact: How SF6 Gas Analyzers Prevent Downtime

A European utility company recently used an SF6 gas analyzer during periodic inspection of a 220 kV GIS substation. The analyzer detected a 3×10⁻⁸ mbar·L/s leak in a busbar enclosure—too small to be identified by pressure gauges. By repairing the leak immediately, the utility avoided:

1. A potential GIS failure that could have caused a 48-hour power outage affecting 50,000 customers.

2. The release of ~15 kg of SF6 (equivalent to 352.5 tons of CO₂) into the atmosphere.

3. $200,000 in emergency repair costs and lost revenue.

This case study highlights why SF6 gas analyzers are indispensable for proactive, cost-effective periodic equipment inspection.

For organizations managing SF6-insulated electrical equipment, periodic inspection is not an option—it’s a responsibility. A reliable SF6 gas analyzer turns this task from a routine check into a strategic investment: it safeguards power system reliability, ensures compliance with environmental laws, and extends the life of critical equipment. When choosing an analyzer, prioritize portability, accuracy, and compliance to maximize the value of every inspection. By integrating this tool into your maintenance workflow, you protect both your operations and the planet.
