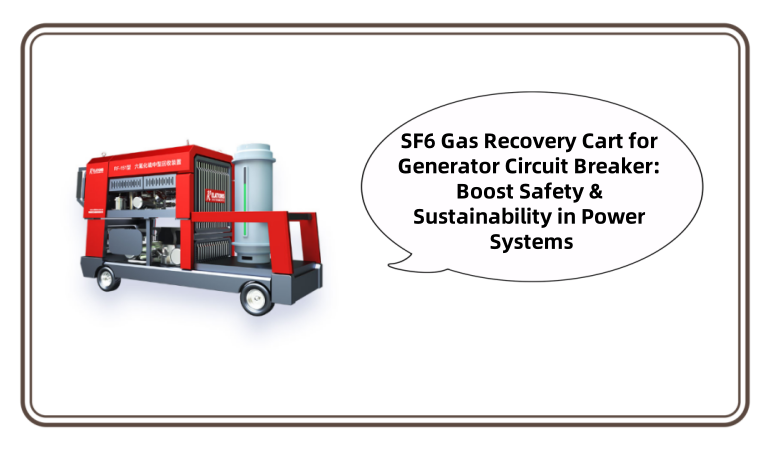

SF6 Gas Recovery Cart for Generator Circuit Breaker: Boost Safety & Sustainability in Power Systems

SF6 Gas Recovery Cart for Generator Circuit Breaker: Boost Safety & Sustainability in Power Systems

Why Generator Circuit Breakers Need Specialized SF6 Recovery Carts

Unlike general SF6 recovery equipment, an SF6 gas recovery cart for generator circuit breaker is engineered to match the unique requirements of GCBs. Generator circuit breakers operate at high voltages (often 11kV to 36kV) and handle large current loads, so their SF6 systems have specific pressure ranges and gas purity demands. A dedicated recovery cart ensures:

1. No gas loss during GCB maintenance (e.g., overhaul or part replacement): Leaks not only waste expensive SF6 but also violate environmental regulations (such as the EU’s F-Gas Regulation).

2. Protection of GCB internal components: Contaminants like moisture or air can damage GCB insulation—recovery carts include purification filters to remove impurities before reusing SF6.

3. Compliance with global standards: Leading carts meet IEC 60480 (SF6 gas handling guidelines) and local sustainability mandates, critical for power plants aiming to reduce their carbon footprint.

Core Functions of an SF6 Gas Recovery Cart for Generator Circuit Breaker

A high-quality recovery cart integrates three key functions tailored to GCBs:

1. Efficient Recovery: It extracts SF6 from GCB tanks at low pressures (down to 1 mbar or lower), ensuring over 99% gas recovery rate—far higher than generic carts, which may leave residual gas that risks leaks.
2. Deep Purification: Built-in drying units (using molecular sieves) and particle filters remove moisture (to <5 ppmv) and dust, preventing GCB insulation breakdown. This is vital because even small amounts of moisture can cause electrical arcing in high-voltage GCBs.
3. Safe Storage: The cart’s sealed storage tanks are designed to handle the high-pressure SF6 recovered from GCBs, with pressure gauges and safety valves to avoid overpressurization. Some models also include gas weighing scales for accurate inventory tracking.

How to Choose the Right SF6 Recovery Cart for Your GCB

When selecting an SF6 gas recovery cart for generator circuit breaker, focus on these factors:

1. Compatibility: Ensure the cart’s pressure range (0.1–10 MPa typical) matches your GCB’s SF6 system. For example, 25kV GCBs often require carts with higher pressure handling than 11kV units.

2. Recovery Speed: Look for carts with high-flow compressors (e.g., 50–100 Nm³/h) to minimize GCB downtime—critical for power plants where extended outages cost thousands in lost revenue.

3. Portability: Many GCBs are installed in tight spaces; compact, wheeled carts (with ergonomic handles) improve maneuverability during on-site maintenance.

4. Certifications: Prioritize carts certified by ISO 9001 (quality) and ISO 14001 (environmental management) to ensure reliability and compliance.

Real-World Impact in Power Plants

Power plants worldwide are already leveraging SF6 gas recovery carts for generator circuit breakers to enhance sustainability. For example, a 1,200 MW coal-fired plant in Asia reduced its annual SF6 emissions by 85% after adopting dedicated carts, cutting its carbon footprint by 300+ tons CO₂ equivalent. A hydroelectric plant in Europe saved $50,000 annually by reusing recovered SF6 instead of purchasing new gas. These cases highlight how the cart is not just an environmental tool but a cost-saving investment.

In conclusion, an SF6 gas recovery cart for generator circuit breaker is a non-negotiable tool for modern power plants. It safeguards the environment, ensures GCB reliability, and aligns with global sustainability goals. By choosing a cart tailored to your GCB’s specifications, you can protect critical power infrastructure while reducing operational costs and regulatory risks.
