Ultimate vacuum degree: 10Pa
Qualification certification: CE certification
Power supply: 380VAC 50Hz

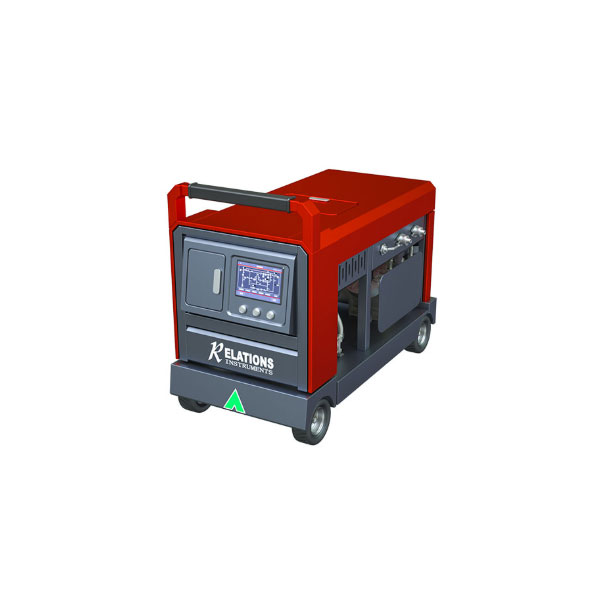

The RF - S series SF6 gas vacuum pumping device is suitable for the vacuum - pumping operation of sulfur hexafluoride electrical equipment with a voltage of (10 - 110) kV, 220kV porcelain column circuit breakers, and 500kV porcelain column circuit breakers.
1. The RF - S series SF6 gas vacuum pumping device is used for vacuum - pumping and filling SF₆ gas from the gas cylinder to the gas chamber.
2. The vacuum pump is equipped with its own exhaust gas treatment device.
3. Automatic stop of vacuum - pumping.
4. The vacuum pump of this SF6 gas vacuum pumping device is equipped with an anti - oil - return valve to prevent oil return and is equipped with a tool tray.
| Model | Dimensions | Weight | Vacuum Pumping Rate | Ultimate Vacuum | Certification | Power Supply |
|---|---|---|---|---|---|---|
| RF-S8 | 750*530*610 mm | 120kg | 8m³/h | 10Pa | CE Certification | 380VAC 50Hz |
| RF-S17 | 750*530*610 mm | 130kg | 17m³/h | 10Pa | CE Certification | 380VAC 50Hz |
| RF-S64 | 950*650*1200 mm | 260kg | 64m³/h | 10Pa | CE Certification | 380VAC 50Hz |
| RF-S100 | 950*650*1200 mm | 270kg | 100m³/h | 10Pa | CE Certification | 380VAC 50Hz |
| RF-S200 | 1500*830*1200 mm | 380kg | 200m³/h | 10Pa | CE Certification | 380VAC 50Hz |
| RF-S300 | 1500*830*1200 mm | 390kg | 300m³/h | 10Pa | CE Certification | 380VAC 50Hz |
