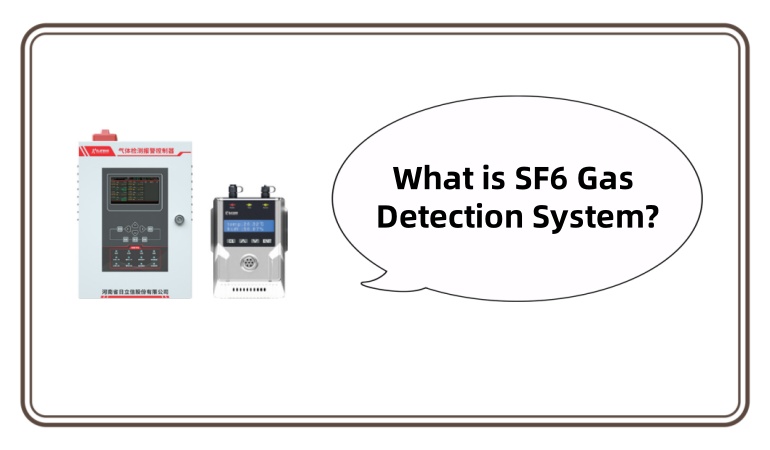

What is SF6 Gas Detection System?

What is SF6 Gas Detection System?

SF6 (sulfur hexafluoride) is a colorless, odorless gas widely used in power equipment (e.g., GIS, transformers) for insulation and arc extinguishing. However, it is a potent greenhouse gas (23,900 times more impactful than CO₂ over 100 years) and its decomposition products (e.g., SF₄, SO₂) are toxic to humans. An SF6 gas detection system is a specialized device designed to monitor SF6 gas concentration, detect leaks, and trigger alerts—critical for ensuring personnel safety, equipment reliability, and environmental protection.

Core Functions of SF6 Gas Detection Systems

1. Real-Time Concentration Monitoring: Equipped with high-sensitivity sensors (e.g., electrochemical, infrared), the system continuously tracks SF6 levels in air or enclosed spaces (e.g., power substations). It displays data in real time via a dashboard, allowing operators to spot abnormal changes promptly.
2. Leak Detection & Alarm: When SF6 concentration exceeds a preset safety threshold (e.g., 1,000 ppm for short-term exposure) or a leak is detected, the system activates audible/visual alarms. Advanced models also send remote notifications via SMS or IoT platforms to minimize response time.
3. Data Logging & Analysis: It records historical monitoring data (e.g., concentration trends, leak events) for compliance reporting (e.g., environmental regulations) and predictive maintenance—helping identify potential equipment issues before failures occur.

Key Components

A typical SF6 gas detection system includes:

1. Sensor Module: The core component that captures SF6 gas signals;

2. Data Processing Unit: Converts sensor signals into readable data and runs alarm logic;

3. Display & Alarm Unit: Shows real-time data and triggers alerts;

4. Communication Interface: Enables data transmission to central control systems (e.g., SCADA) for remote monitoring.

Main Applications

The system is indispensable in:

1. Power Industry: Monitoring GIS (Gas-Insulated Switchgear) rooms, transformer vaults, and cable trenches;

2. Chemical Plants: Tracking SF6 usage in manufacturing processes;

3. Laboratories: Ensuring safe handling of SF6 during research;

4. Renewable Energy Facilities: Protecting wind/solar power grid equipment using SF6.

In short, an SF6 gas detection system is not just a safety tool—it is a key solution for balancing the industrial value of SF6 with environmental and human health protection. As global regulations on greenhouse gases tighten, its role in sustainable operations will only grow.
